Replace Rinnai Gas Heater Pakistan Water Heater
Basic Info

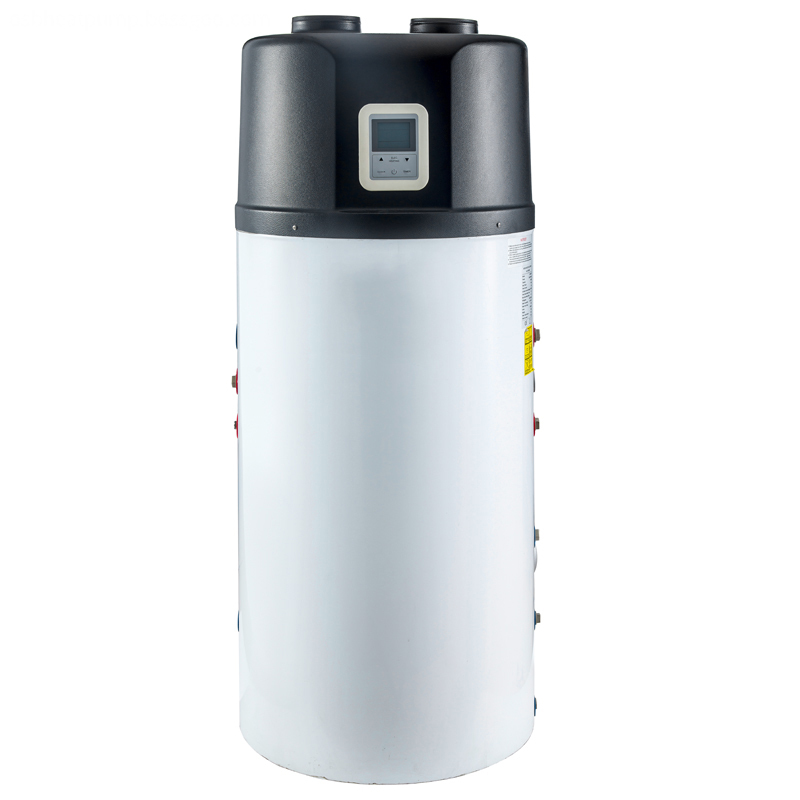

Model No.: ZR9W-200TE
Product Description
Product description:
1. All in one heat pump, compact structure.
2. Safe and long service time by use External aluminium coil. The condenser coil
is wrapped around outside the tank, no contamination potential.
3. Eco heat pump centrifugal fan motor which with high efficiency.
4. With Auxiliary electrical heating to enlarge the heating capacity to help
Ce Certification Heat Pumps heating fast and as backup heating.
5. Intelligent defrosting all in one heat pump water heater, with reverse valve inside for defrosting.
6. Temperature fuse of 85 deg c and 90 deg c security protection, ensure air heat pump
running more safely and reliable.
Product detail:
Model | | ZR9W-200TE |
Rated heating capacity | kw | 3.0 |
Btu | 10000 | |
Water tank volume | L | 200 |
COP | | 3.3 |
Heating power input | kw | 0.9 |
Power supply | V/Ph/Hz | 220-240/1/50 |
Max outlet water temp | ℃ | 60 |
Applicable ambient temp | ℃ | -7~43 |
Duct diameter | φ | 150 |
Rated heating current | A | 4.2 |
Auxiliary electrical heating | kw | 1~2 |
Noise | dB(A) | 49 |
Air volume | m³/h | 700 |
Rated tank pressure | Mpa | 0.6 |
Water connections | Inch | 3/4" |
Gross weight | kg | 88 |
Container loading qty | 20/40/40HQ | 27/57/57 |
Schematic:
Product application:
Contact us if you need more details on Rinnai Gas Heater. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Pakistan Water Heater 12v、Heater Oil Radiator. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : All In One Heat Pump
